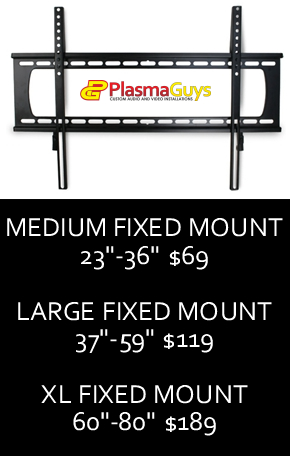

| This is a Flat Wall Bracket for LCD Plasma. This Flat Wall Mount supports most 23" to 37" flat panel screen and plasma TVs up to 165 lb weight.
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to two wooden studs, or concrete.
Warning: This mounting bracket is not compatible with certain LG (r), PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U, LG: LG52LG50-UA, (use our Wide Mount) LG52LG50 (use our Wide Mount), Phillips 42PF9630A137 (use our Wide Mount) |
Compatibility -
Will fit most mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 450x250.
*Mounting holes on television should be 18" or less apart horizontally & 10" or less apart vertically.
Maximum weight capacity: 165lbs
Dimensions -
Wall plate: 20.08" x 8.88"*
Arms: 12.99" x 1.13"*
*Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.
Range of Motion -
Tilt: Fixed
Swivel: None
Extension from wall: 1.25"
Design & Construction:
Solid heavy-gauge cold steel construction
Durable powder-coated finish in Black
Easy installation.
Included in Box -
Mount
Mounting hardware
User manual |
|
 |
|
|
 |
This is an Angle Adjustable Wall Bracket for LCD Plasma. This Flat Wall Mount supports most 37" to 63" flat panel screen and plasma TVs up to 165 lb weight.
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The back of the display sits about 4 inches off the wall when set in parallel. The mount includes simple to align brackets and a unique wall plate that can be mounted to various wall constructions including wood studs or concrete.
Warning: This mounting bracket is not compatible with certain LG (r), PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U, LG: LG52LG50-UA, (use our Wide Mount) LG52LG50 (use our Wide Mount), Phillips 42PF9630A137 (use our Wide Mount) |
Compatibility -
Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 750x450.
*Mounting holes on television should be 28" or less apart horizontally & 18.5" or less apart vertically.
Maximum weight capacity: 165lbs/75kg
If the mounting dimension of your television exceed 28" horizontally, please consider using PID# 3004 or 3401.
Dimensions -
Wall plate: 32" x 8 7/8"*
*Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.
Range of Motion -
Tilt: o degree to 15 degrees down (variable)
Swivel: None
Extension from wall: 4.0" when parallel to the wall
Design & Construction:
Solid toughened steel construction
Durable scratch resistant finish in Black
Easy installation.
Included in Box -
Mount
Mounting hardware
User manual
|
|
 |
|
|
 |
One of the big selling points of flat panel displays is the ability to mount it on a wall. Consumers are spending large sums of money to acquire this new technology. So, it’s no wonder people are willing to spend hundreds of dollars on a reliable wall mount to ensure that their investment is securely braced to the wall. Other wall mount manufacturers are more than willing to take advantage of the situation.
This mount is made from high quality materials including heavy gauge steel plates and arms.
Warning: This mounting bracket is not compatible with certain LG (r), PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U, LG: LG52LG50-UA, (use our Wide Mount) LG52LG50 (use our Wide Mount), Phillips 42PF9630A137 (use our Wide Mount) |
Compatibility -
Will fit most large flat panel plasma and LCD TVs with mounting patterns up to VESA 750x450.
*Mounting holes on television should be 30" or less apart horizontally & 18.75" or less apart vertically.
Maximum weight capacity: 175lbs
Dimensions -
Front plate: 32" x 9 3/8"*
Wall plate: 19 11/16" x 11"*
*Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion -
Tilt: -15 to +15 degree up and down.
Swivel: -60 to +60 degree side to side
Extension from wall: about 5" to 20"
Design & Construction:
Solid 2.5mm heavy-gauge cold steel construction
Durable powder-coated finish in black
Easy installation.
Included in Box -
Mount
Mounting hardware
User manual |
|
 |
|
|
 |
| This Ceiling Mount comes with our Tilt Mount Listed Above
Wide Mounting holes on the bracket that attach to the ceiling are 5.25" x 4". The Bracket is 3ft long and extends to 5 ft. long 1 1/2 " steel pipe.
IMPORTANT: Mount comes with anchors designed for stone, concrete and hollow block. No wood mounting solutions are provided. You are responsible for providing your own solutions to mounting to wood beam ceilings. We apologize for any inconvenience.
|
|
|
 |
|
|
 |

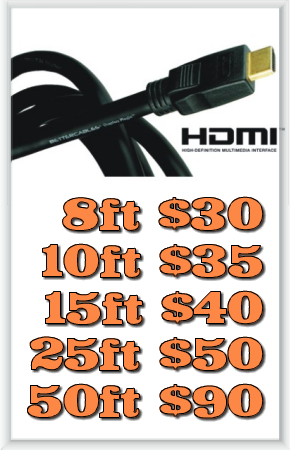

High Speed HDMI Cable
The latest revision for HDMI doubles the bandwidth of the original and has opened the door for a host of potential new advancements in Home Theater Audio/Video performance. New features such a “Deep Color,” higher color gamut, and high resolution, multi-channel audio formats like Dolby True HD and DTS-HD Master Audio will make higher bandwidth demands than ever before. Equipment manufacturers are bringing out new devices to take advantage of these new features. Category 2 testing ensures that the standard set by this new requirements are adhered to.
Be ready for what the future has in store with our HDMI 1.3a, Category 2 certified cables. These cables have been designed to meet the high bandwidth performance standards set by HDMI 1.3a and have passed stringent Category 2 testing. These cables are constructed to the highest quality with full triple layer shielding from end to end, strong, solid wire welds and the highest quality materials including high purity copper, gold plated connectors and tin plated conduits.
We offer premium cables without the premium price. Spend your money getting better equipment. Cables shouldn’t cost more than the equipment you’re connecting.
Helpful Tip:
It’s a good idea to test the cables before installing them inside a wall. That way, if there are any issues, we can help you resolve them before you spend the time and expense of installing them. |
Connector Type: HDMI male to HDMI male
Connector Finish: Gold
Length: 8ft - 50ft
Gauge: 24AWG
# of conductors: 19
Conductor Plating: Tin
Shielding level: Triple
Shielding type: EMI
Ferrite Cores: No
Net Jacket: Yes
Built-in Equalizer: No
Supported Resolutions: 480i to 1080p Bandwidth: up to 340 Mhz (10.2 Gbps)
Deep Color: 10-bit, 12-bit, and 3*16-bit |
UL Specs
CL2 (In-Wall): Yes
VW-1: Yes
Voltage Rating: 30V
Temperature Rating: 80° C HDMI Certified: Yes
HDMI Spec: 1.3a
Category 2 Certified: Yes
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant: Yes
1.3 Device Compatible: Yes
Supports DVD Audio: Yes
Supports SACD: Yes
Supports TrueHD & DTS-HD: Yes
Overall Diameter: 10mm |
|
 |
|
|
 |

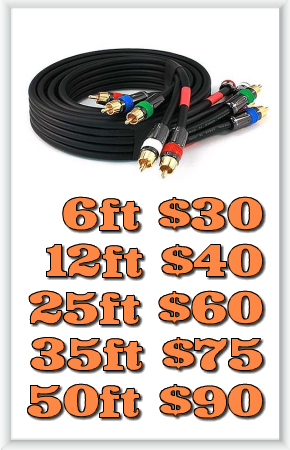

Component video cables (Y, Pr, Pb / Y, Cr, Cb) are among the best analog methods for transferring crisp, vibrant video from your various sources. It will support high definition up to 1080i and progressive scan signals. We only offer premium grade cables that are made with the finest materials and constructed with the best craftsmanship.
Our Premium Cables feature thick RG-6 Coax cables for enhanced signal integrity. Connectors are assembly type, compound connectors with gold plated contacts, split center pin and high compression outer conductors for maximum contact and superior signal transfer. Colored rubber rings make each connector easy to identify and easier to grip. These cables are also CL2 rated to meet most building codes for in-wall installations. |
Specifications:
- Color Coded: Green, Red and Blue (Component Video) & Red, White (Stereo Audio)
Video Cable
- Triple heavy-duty super shielded RG-6/U coaxial cables to maximum signal transfer and minimize interference.
- Gold plated RCA plugs to improve conductivity.
- Color coded and labelled for the luminance (Y) and chrominance (Pr, Pb) Signals.
- Solid center conductor: 18 AWG (1*1.02) Super shielding: 120 % aluminum foil + 9*16/0.12 TINNED COPPER Braid
- Fully molded construction. Excellent quality.
Audio Cable
- 26 AWG (10/0.12) Super shielding: 120 % aluminum foil + 48/0.12 TINNED COPPER Braid
|
|
 |
|
|
 |

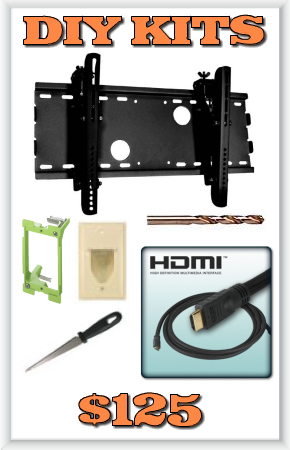

Kit Includes: Everything you need to Do It Yourself
1 -Tilt Mount
1 - 8ft HDMI Cable
2 - Wall Plates
2 - Single Gang Retrofit Low Voltage Boxes
1 - Drywall Saw
1 - Drill Bit
Step by Step Instructions
|
|
 |
|
|
|
|
|
|
|
| |
|
|
 |
| |
